Polcd Small 2.8 Inch 240x320 14pins RTP Resistive Touch Panel SPI interface ST7789V 2.8" IPS TFT LCD Module

Name: Polcd Small 28 Inch 240x320 14pins RTP Resistive Touch Panel SPI interface ST7789V 28quot IPS TFT LCD Module
Brand: Polcd
Price: 1 USD

Wholesale Polcd Small 2.8 Inch 240x320 14pins RTP Resistive Touch Panel SPI interface ST7789V 2.8" IPS TFT LCD Module from china suppliers

Brand Name : Polcd

Model Number : P028B129-IPS-TP

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram

Supply Ability : 25,000 PCS per day

Delivery Time : 1-7 working days

Packaging Details : FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Resolution : 240x320

Interface : 4wire SPI

Driver IC : ST7789V

Brightness (cd/m²) : 260 nit

Viewing Angle : IPS all view angle

Display area : 43.20(H)x57.60(V)mm

Contact Now

Parameter:

Item	Specification
Model	P028B129-IPS-TP
Screen Size	2.8 inch
Number of Pixel	240RGB(H)x320(V)
Display area	43.20(H)x57.60(V)
Pixel pitch	0.180(H)x0.180(V)mm
Pins	14 pins
Outline Dimension	50.00x69.20x3.50mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Gray inversion direction	--
Display Color	262K
Luminance(cd/m2)	260 nit
Contrast Ratio	1200:1
Surface treatment	--
Interface	4wire SPI
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Polcd Small 2.8 Inch 240x320 14pins RTP Resistive Touch Panel SPI interface ST7789V 2.8" IPS TFT LCD Module

Product Tags:

2.8 Inch Touch Panel

2.8 Inch IPS TFT LCD Module

2.8 Inch Resistive Touch Panel

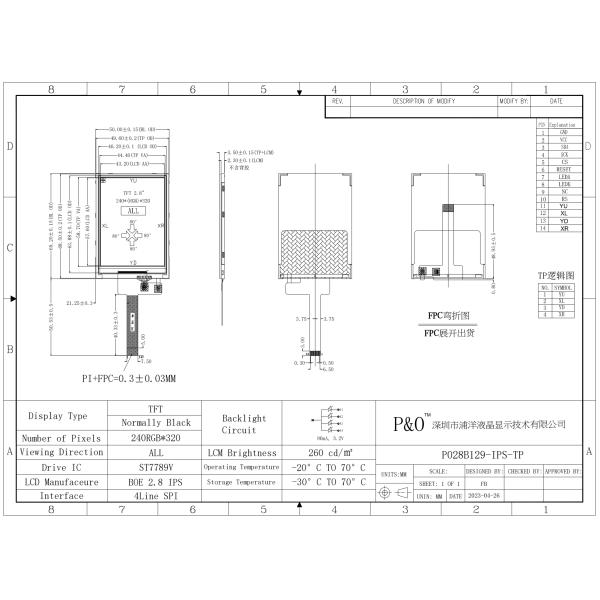

Polcd Small 2.8 Inch 240x320 14pins RTP Resistive Touch Panel SPI interface ST7789V 2.8" IPS TFT LCD Module Images
