Polcd 2.8 Inch Tft Display Screen JD9853 240*320 Ressolution 18pin 200nits TFT LCD Module

Brand Name : Polcd

Model Number : P028HK9853-18P

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T, L/C, Credit card, PayPal

Supply Ability : 500,000 piece per week

Delivery Time : 1~7 working days

Packaging Details : 20 cm * 30 cm * 40 cm

Screen Size : 2.8 inch

Resolution : 240RGB(H)x320(V)

Brightness (cd/m²) : 200 nit

Interface : 4wire SPI

Driver Ic : JD9853

Display area : 43.20(H)x57.60(V)

Viewing Direction(eye) : ALL

Contact Now

Parameter:

Model P028HK9853-18P
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Display area 43.20(H)x57.60(V)mm
Pixel pitch 0.180(H)x0.180(V)mm
Pins 18 pins
Outline Dimension 50.00x69.20x2.30mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally black
Viewing Direction(eye) ALL
Gray inversion direction --
Display Color 262K
Luminance(cd/m2) 200 nit
Contrast Ratio 1200:1
Surface treatment --
Interface 4-line SPI
Back-light LED Side-light type
Drive IC JD9853
Operation Temperature -20~70℃
Storage Temperature -30~80℃

Polcd 2.8 Inch Tft Display Screen JD9853 240*320 Ressolution 18pin 200nits TFT LCD ModulePolcd 2.8 Inch Tft Display Screen JD9853 240*320 Ressolution 18pin 200nits TFT LCD ModulePolcd 2.8 Inch Tft Display Screen JD9853 240*320 Ressolution 18pin 200nits TFT LCD Module


Product Tags:

240*320 Tft Display Screen



2.8 Inch Tft Display Screen



200nits TFT LCD Module


Wholesale Polcd 2.8 Inch Tft Display Screen JD9853 240*320 Ressolution 18pin 200nits TFT LCD Module from china suppliers

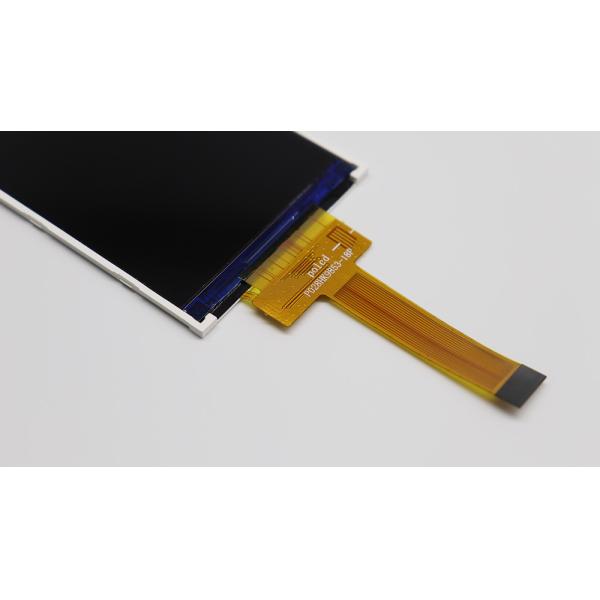

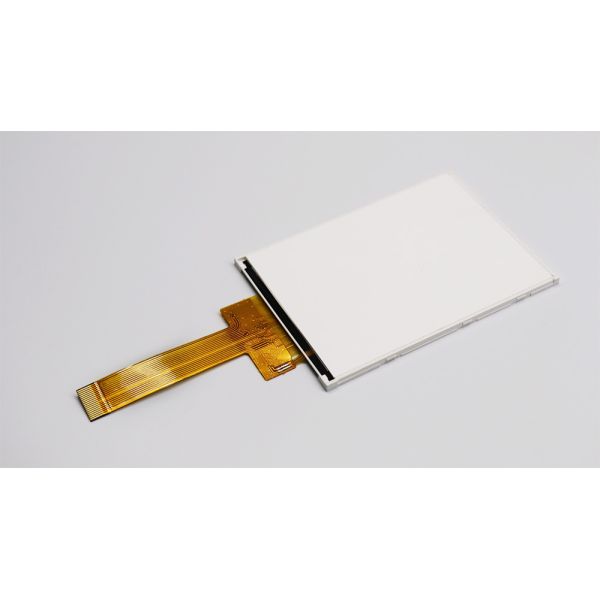

Polcd 2.8 Inch Tft Display Screen JD9853 240*320 Ressolution 18pin 200nits TFT LCD Module Images
